Silent Knight SD500-AIM Addressable Input Module Silent Knight SD500-ANM Addressable Notification Module (Used with the 5820XL Only)

SD500-AIM Addressable Input Module

The SD500-AIM and SD500-MIM are addressable input modules for use with Silent Knight's IntelliKnight fire control panel.  The SD500-AIM and SD500-MIM are designed to be used with pull station, water flow switches, and other applications requiring dry contact alarm initiation devices.

The SD500-AIM addressable input module mounts to a 4"-square box.   The SD500-MIM mini input module fits inside a single gang box.  The modules are Class B supervised, single input contact monitors.  Using an EOL resister, they monitor for alarm contact closures and for open circuit wiring fault conditions.

The SD500-AIM and SD500-MIM offer a compact design for adaptability and pleasing aesthetics as well as easy installation and stable operation - a flexible solution for all your fire protection needs.


Download:

Model SD500-ANM Addressable Notification Module

The Cost effective way to expand the IntelliKnight's notification circuits.

The SD500-ANM gives you the flexibility to add notification circuits wherever you need them.  The SD500-ANM is a supervised addressable notification device that provides you with additional notification circuits on the IntelliKnight's SLC loop.  Controlled by the SLC loop up to 127 SD500-ANM modules can be used on an SLC loop.  The SD500-ANM provides a reverse polarity Class A or Class B notification appliance circuit with an aux power input.  Each SD500-ANM is provided power from a separate power supply and is controlled by the main panel.   Power can be provided near the signaling appliance to reduce the wire gauge requirements or power can come from a main power supply and be controlled separately by the individual notification modules.  All of the panels 20 notification patterns can be produced by the SD500-ANM.

The SD500-ANM is an Addressable Notification Module for use with the IntelliKnight fire alarm control panel.  The SD500-ANM provides a single class A or B circuit that is controlled by the IntelliKnight's Signaling Line Circuit.   Power for the circuit is provided to the SD500-ANM module from a separate power supply, making it easy to power remote devices.  The notification circuit, remote power and communication to the SD500-ANM are supervised by the Intelliknight control panel.

Operation
Each notification module is programmed with a unique SLC loop address.  When an event that controls the notification module occurs. the notification switches its' built-in relay feeding power from the auxiliary power input to the notification appliance.

Features

  • Class A (Style Z) or Class B (Style Y) Notification Circuit.
  • Flexible programming - choose the cadence pattern (sixteen standard & four user-defined).
  • Polling LED visible through cover plate
  • UL listed, complies with NFPA 72.
  • Adds up to 127 independent output circuits on each SLC loop.
  • One auxiliary power source input.
  • Completely supervised.

Specifications

Operating Voltage: 24 VDC

SLC Current: .55 mA

Ambient Temperature: 32F to 120F (0C TO 49C)

Ambient Temperature: 32F to 100F (0C to 37C)

Mounting: 4-square electrical box.

Aux. Power Current: Alarm:  56 mA
                                  Standby:   6 mA

Notification Appliance Current Rating: 2 Amps Maximum

Downloads:

Silent Knight SD500-ARM Addressable Relay Module Silent Knight SD500-LED LED Driver Module

SD500-ARM Addressable Relay Module

Place relay applications anywhere on the IntelliKnight loop with the SD500-ARM Addressable Relay Module.

The SD500-ARM is an addressable device that adds great flexibility to the IntelliKnight system. Providing two Form C contacts rated at 2.0 amps @ 30 VDC. The SD500-ARM allows you to control a wide variety of normally open and normally closed applications, including elevator recall, door closing, fan operation, and auxiliary notification. And, because the relay module is addressable, these applications can be located at any point in the signaling line circuit.

Like other IntelliKnight SLC devices, the SD500-ARM is compact for adaptability and pleasing aesthetics. Combine this with the features you've come to expect from Silent Knight fire protection devices -- easy installation and stable operation -- and it adds up to a flexible solution for all your fire protection needs.

Downloads:

SD500-ARM Addressable Relay Module Spec Sheet (52K PDF file)

Have an installation that needs a custom annunciator? Meet that requirement by using the SD500-LED.

The SD500-LED is a LED driver module capable of driving 80 LEDs which connects to the SLC loop on a Silent Knight addressable control panel.

Up to 40 SD500-LED modules can be used per SLC loop with a maximum of 100 SD500-LED modules per system.

Downloads: SD500-LED LED Driver Module Spec Sheet (120K PDF file)

Silent Knight SD500-LIM Line Isolation Module Silent Knight SD500-MIM Mini Input Module

SD500-LIM Line Isolator Module

Isolate SLC loop problems without losing the entire loop.

Isolate a short circuit wiring fault on a SLC loop using a SD500-LIM. Normally if the control panel detects a short on the SLC loop the entire loop is disabled. When isolator modules are used and a short occurs on the SLC loop, it will be detected as a trouble but all the SLC devices that are protected by a line isolator module will continue to operate.

Downloads:

SD500-LIM Line Isolator Module Spec Sheet (70K PDF file)

SD500-MIM Miniature Input Module

The SD500-AIM and SD500-MIM are addressable input modules for use with Silent Knight's IntelliKnight fire control panel. The SD500-AIM and SD500-MIM are designed to be used with pull station, water flow switches, and other applications requiring dry contact alarm initiation devices.

The SD500-AIM addressable input module mounts to a 4"-square box. The SD500-MIM mini input module fits inside a single gang box. The modules are Class B supervised, single input contact monitors. Using an EOL resister, they monitor for alarm contact closures and for open circuit wiring fault conditions.

The SD500-AIM and SD500-MIM offer a compact design for adaptability and pleasing aesthetics as well as easy installation and stable operation - a flexible solution for all your fire protection needs.

Downloads:

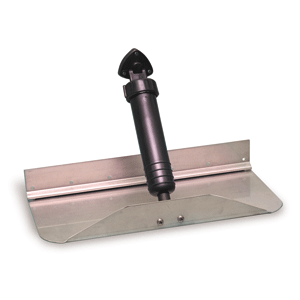

BENNETT TRIM TABS 24 X 9 249 W/ NO CONTROL BENNETT TRIM TABS 30 X 9 309 W/ NO CONTROL

Bennett Trim Tabs are designed and manufactured with pride at the Bennett Marine plant in Deerfield Beach, Florida. Every Bennett system carries with it an accumulation of nearly 40 years of research, development, and testing and is designed to provide years of dependable service.

Every trim tab is sheared and bent, not welded. Welding alters the properties of stainless steel which invites corrosion. Bennett actuators feature through-hull hydraulics. There are no vulnerable external hoses to decay. Plus, every Hydraulic Power Unit is tested by both person and computer to insure this reliable unit deflects the trim tabs, holds firmly during use, and retracts smoothly.

Standard Trim Tab Kit
Bennett Standard Trim Tab Kits are ideal for cruisers who want to optimize performance over a broad range of sea conditions. Kits are complete with all the necessary components for installation.

Bennett Trim Tabs are designed and manufactured with pride at the Bennett Marine plant in Deerfield Beach, Florida. Every Bennett system carries with it an accumulation of nearly 40 years of research, development, and testing and is designed to provide years of dependable service.

Every trim tab is sheared and bent, not welded. Welding alters the properties of stainless steel which invites corrosion. Bennett actuators feature through-hull hydraulics. There are no vulnerable external hoses to decay. Plus, every Hydraulic Power Unit is tested by both person and computer to insure this reliable unit deflects the trim tabs, holds firmly during use, and retracts smoothly.

Standard Trim Tab Kit
Bennett Standard Trim Tab Kits are ideal for cruisers who want to optimize performance over a broad range of sea conditions. Kits are complete with all the necessary components for installation.
BENNETT TRIM TABS 36 X 9 369 W/ NO CONTROL Channel Vision 2106 BNC Connector Twist-On for RG59

Bennett Trim Tabs are designed and manufactured with pride at the Bennett Marine plant in Deerfield Beach, Florida. Every Bennett system carries with it an accumulation of nearly 40 years of research, development, and testing and is designed to provide years of dependable service.

Every trim tab is sheared and bent, not welded. Welding alters the properties of stainless steel which invites corrosion. Bennett actuators feature through-hull hydraulics. There are no vulnerable external hoses to decay. Plus, every Hydraulic Power Unit is tested by both person and computer to insure this reliable unit deflects the trim tabs, holds firmly during use, and retracts smoothly.

Standard Trim Tab Kit
Bennett Standard Trim Tab Kits are ideal for cruisers who want to optimize performance over a broad range of sea conditions. Kits are complete with all the necessary components for installation.
Channel Vision's BNC Twist on Type RG59 is a substitute for BNC Crimp on Type RG59 - 2 Piece (2114).

Channel Vision 2106 BNC twist on type RG59 On sale now for $2 .Channel Vision Technology is a leading manufacturer of innovative technology products in Home Automation, Structured Wiring Systems, Wireless Audio, Multi-Room Audio, Whole House Intercom Systems, Security Cameras and DVR's in both residential and commercial applications.
Channel Vision 2129 BNC Female-to-RCA Male Connector 100pc Bag Channel Vision 3000-10 10dB Attenuator
These BNC Female to RCA Male Connectors change cables with a male BNC connector into a male RCA connector. This adapter is commonly used to connect different types of audio-video devices together. If you have BNC cables already, this adapter will allow them to be used with video gear which has RCA inputs.

Specifications:

Manufacturer: Channel Vision
Manufacturer Product No.: 2129
Compatibility: Use to connect RCA connectors with BNC connectors
Channel Vision's 10dB Attenuator is a great asset to any home or business installation. Buy now and take advantage of our low prices and great services for Channel Vision 3000-20 20dB Attenuator/F135-A.
