Unique new fishfinding imaging, precision GPS navigation and brilliant 5 in./12.7 cm color viewing detail and suprisingly affordable.

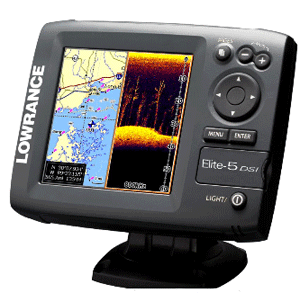

With the incredible new standalone Elite-5 DSI imaging fishfinder with chartplotter, you're equipped with a technologically new way to look at finding -- and fishing -- hot spots: clearly, precisely,and especially affordably.
Exclusive Lowrance DownScan Imaging innovation displays crystal-clear photo-like views of the underwater worlds below the boat. No interpretation needed to see:
- Thermoclines Exposed - clearly see the boundary layer between the lower cooler water and, upper warmer, oxygen-rich zone where fish hang
- Fish Truly Revealed - Elite-5 DSI imaging leaves nothing to the imagination, clearly showing predator fish and baitfish schools
- Bottoms Uncovered - you easily distinguish between hard and soft bottoms, as well as fish and structure on/near the bottom
- Structure Disclosed - with photo-like views you can recognize all manner of structure at a glance, like bridge pilings, laydowns, ledges, drop-offs, vegetation, wrecks; no interpretation needed
Dual 455/800 kHz Coverage
Selectable 455 kHz sounding for wider and deeper sonar imaging coverage, with 800 kHz for enhanced viewing of targeted locations.
More Power (and Depth and Speed) to You
Elite-5 DSI fishfinders transmit 2,400W peak-to-peak/300W RMS power with recently-tested depths to 200 ft./61 m, and impressive bottom readings at boat speeds up to 40 mph. Optimum imaging speed of 8 mph and under.
Slim new low-profile, high-speed, transom-mount, 455/800 kHz Skimmer DSI imaging transducer with exclusive down-looking crystal and built-in temp sensor, and trolling motor-mount bracket option.
Precision GPS Position Accuracy
Internal, front-mounted, high-sensitivity 16-channel GPS antenna for superior navigation guidance, even when mounted in-dash. External antenna option available.
Multiple Map/Chart Options
Waterproof microSD media card slot accepts the most up-to-date mapcard options including Fishing Hot Spots Pro USA and LakeMaster in the U.S., and Navionics Gold worldwide.
Higher-resolution 5 in./12.7, 480x480 pixel SolarMAX 256-color TFT displays deliver unmatched viewing brightness and detail at wider angles and bright sunlight. Adjustable fluorescent cold-cathode backlit screen and keypad for low-light or night angling.
Pick Your Favorite Color
Expanded sonar imaging display color palette choices offers optimum viewing for personal preference and water/light conditions.
Full Automatic or Manual
Elite-5 DSI is so advanced it's easy to use, with automatic fine-tuning for the best sonar imaging picture possible after power-up. Advanced User Mode for full manual control of settings.
TrackBack Into Sonar History
Enjoy immediate scroll-back of imaging sonar history to review covered water and pinpoint spots (saves time and fuel trying to re-trace your path). With Elite-5 DSI, mark a waypoint at your cursor location with a simple press of a button.
Easy to Install and Use
Unique new keypad and quick-release bracket design offers easy installation, plus one-hand viewing adjustment, operation at-speed, and removal/reinstall.
Simplified menu with text and icons for faster and easier selections.
