  Simrad LSS-1 StructureScan Module w/PC & Hardware

List Price: $469.00

Our Price : $399.00

Product Code: 000-10238-001


Description Specifications

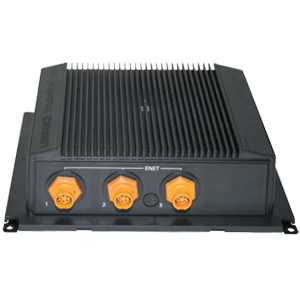

The Simrad StructureScan unit is a black box module designed to connect either direct to Simrad NSE, NSO and similar multifunction displays, or to a wider integrated Simrad navigation network.

High-detail, picture-perfect bottom viewing of the ledges, channels, drop-offs, and wrecks where fish conceal themselves.

What makes it so special?

  • Sidescan Imaging reveals important structures such as rocks, wreckage and other fish habitats down to 46m (150ft) and up to 76m (250ft) on each side of the boat for faster, wider area surveys
  • DownScan ImagingT delivers an astonishingly highly defined image that removes all the guesswork as to what's immediately under your hull, down to approx. 100m (300ft).
  • DownScan Overlay combines StructureScan with the Simrad Broadband Sounder to separate and expose fish targets from surrounding structures.
  • Overlay transparency and colour palettes are fully adjustable.
  • Offers the exclusive TrackBack feature for simultaneous scroll-back of sonar and chartplotter history to set waypoints, and share them across the network.
  • 500w RMS output power

    Installation is simplicity itself; the module can be mounted behind a panel or in a locker, and then it's just a matter of connecting it up to a 10-18v DC power supply and, using simple plug-and-play Ethernet cables, connect up to three Simrad multifunction displays for viewing and independent display control. Alternatively it can be connected to the Simrad integrated navigation network for boat-wide viewing and control along with Simrad Broadband Sounder, Simrad Broadband Radar and many other market-leading navigation and safety aids.

    The Simrad StructureScan module will transform the way every boater, fisherman, or diver; amateur or professional - locates and identifies underwater targets. StructureScan has shown to be a valuable tool for Search and Rescue, harbour, utility and other authorities who require precise information on the water.


  • Sonar Frequency: 455kHz and 800kHz kHz
  • Sonar Output Power: Max WRMS: 500W, WPK: 4000W W
  • Connectors: Three Ethernet ports with a built in 10/100 Ethernet switch
  • Power Supply: 12V (Voltage input: 10V - 17V) vDC
  • Power Consumption: Max: .75A, Typical: .60A, Inrush: 4.7A pk
