  Raymarine X-30 Corepack f/Use w/Type 2 & 3 Drive Units
RAYMARINE X-30 COREPACK USE W/ TYPE 2,3 DRIVE UNITS



List Price: $2,495.00

Our Price : $2,259.99


Product Code: E12199

Qty:

Description Specifications

Engineered for larger power and sail vessels with 12 or 24 Volt DC electrical systems, the SmartPilot X-30 corepack is the "brains" of your Raymarine modular pilot system. Utilizing heavy-duty components and power supply the SmartPilot X-30 course computer can drive any Raymarine Type 2 or Type 3 hydraulic, linear, hydraulic linear or rotary drive system.

The SmartPilot X-30 corepack features an integrated rate-gyro processor as standard equipment. The rate gyro, combined with Raymarine's exclusive AST (Advanced Steering Technology) software algorithms ensure razor-sharp course keeping under any sea conditions. The SmartPilot X-30 also offers the convenience of rudder reference-less operation as well as data connections for SeaTalk, SeaTalkNG, NMEA 0183 and NMEA 2000 giving the SmartPilot X-30 unprecedented connectivity.

Using SeaTalkNG networking, connect your SmartPilot X-30 to the ST70 Color Autopilot Controller and unlock exclusive features including programmable fishing patterns. SmartPilot X-30/ST70 combination allows you the freedom to work the bait while it smoothly handles the boat. Programmable patterns include circles, spirals, cloverleaf, figure 8, lazy-S, zigzag, box, box pattern search, and 180 or 360 degree turns.

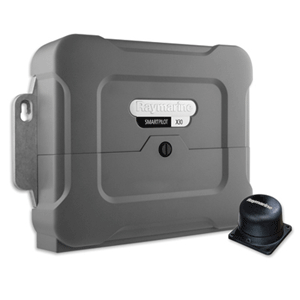

The SmartPilot X-30 core pack includes course computer, rotary rudder reference transducer and fluxgate compass sensor. To complete your autopilot system you will need to add a Raymarine Type 1 autopilot drive and a compatible SeaTalk or SeaTalkNG autopilot controller.
