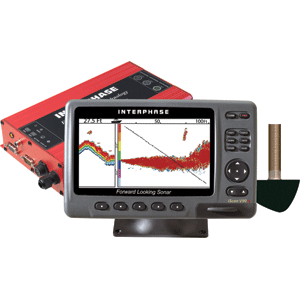

  Interphase iScan V90se 90° Vertical Scanning Sonar w/ Transom-Mount Transducer
INTERPHASE ISCAN V90SE 90 DEG VERTICAL SCANNING SONAR



List Price: $2,388.00

Our Price : $2,049.00


Product Code: U1-0200-90A

Qty:

Description Specifications

iScan V90 SE

The new iScan V90 se combines all the features of our original iScan V90 plus all the features of our powerful SE-200 Sonar Engine

The iScan V90 se operates like underwater sonic radar, scanning a moving beam over a 90-degree arc either vertically or horizontally ahead of the boat. In the Forward Vertical scanning mode, this gives the navigator an underwater sonar image of what's ahead from just under the surface to directly below the boat. In the Forward Horizontal scanning mode, the Color Twinscope electronically steers a searchlight-like beam from port to starboard across the bow, picking up targets in the 12-degree beam.

ISCAN V90SE SPECS
  • Foward Ranges to 1,200 ft
  • Depth Ranges to 600 ft
  • Adjustable Scanning Sectors
  • Simultaneous VGA and Video Outputs
  • Up to Two Remote Keypads
  • Auto Range/ Auto Gain
  • 10-16 VDC- Less Than 1.0 Amp
  • Separate Gain Controls for Forward and Downlooking Modes
  • Shallow Water Vertical Zoom
  • Keel Offset Adjustment
  • Sunlight, Daylight and Night Modes
  • Forward and Downlooking Alarms
  • Loud External Alarm Capability
  • 3,000 Watts Peak to Peak Output
  • NMEA 0183 Digital Depth Output (DPT,DBT)
  • NMEA 0183 GPS Input (GLL,VTG)
  • Full Screen Forward Scan Displays
  • 12 Degree Beam Angle
  • 200kHz Frequency
  • "Power-Off" Memory
  • USB For Future Internet Upgrades
  • On Screen Cursor
