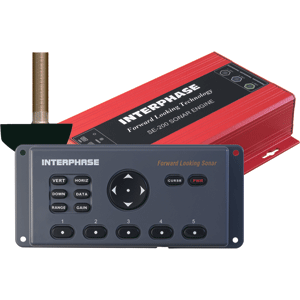

  Interphase SE-200B Sonar Engine w/1TH f/90 Degree Vertical/Horizontal & Fairing Blocks
INTERPHASE SE-200B SONAR T/H 90 DEGREE IN BOTH VERT/HORIZ



List Price: $2,549.00

Our Price : $2,249.00


Product Code: U1-200B-00C

Qty:

Description

Long range Forward Vertical Scan and 90-degree forward horizontal Scan

The SE-200B is a true Dual Axis scanning sonar. It includes all the features of the vertical scanning SE-200A plus the ability to use a horizontal scan to sweep over a 90 degree sector in front and to the sides of the vessel - great for navigating through channels, rocks and coral or tracking schools of bait and fish.

  • Includes remote keypad for use with multifunction or VGA displays
  • Includes all features of SE-200A plus..
  • Uses two phased arrays in either a single thru-hull or dual transom transducers to scan both vertically and horizontally


Features Included on All SE-200 Based Units:

  • Forward Ranges to 1,200 feet
  • Depth ranges to 600 ft
  • Adjustable scanning sectors
  • Simultaneous VGA and Composite Video outputs
  • Up to two remote keypads
  • Optional Keypad, Video and VGA
  • Extension Cables available, up to 250'
  • Auto Range/Auto Gain
  • 10-16 VDC Less than 1.0 Amp
  • Seperate Gain Controls for Forward and Downlooking modes
  • Forward and Downlooking Alarms
  • Loud External Alarm Capability
  • NMEA 0183 GPS Input (Lat/Lon & Speed)
  • 3,000 Watts Peak to Peak Output
  • NMEA 0183 Digital Depth Output
  • Full Screen Forward Scan Displays
  • 12 degree Beam Angle
  • 200 kHz Frequency
  • "Power-Off" Memory
  • Full Screen Depthsounder Display
  • Split Screen Forward Scan and Depthsounder Display
  • Split Screen Forward Scan and Digital Data Screen
  • Shallow Water Vertical Zoom
  • USB for Future Internet Upgrades
  • On-Screen Cursor shows distance and depth at any point
  • Keel offset adjustment
  • Sunlight, Daylight, and Night modes
